MPG系列輻射交聯熱縮保護套管

MPG series Of radiation crosslinked heat shrinkable protection casing

   MPG系列輻射交聯熱縮保護套管是良好的電氣絕緣和安全防護材料。具有安裝方便、環境適應性極好、使用壽命長等特點。主要用于高低壓開關柜、電廠、變電站中的母線母排絕緣防護及安全保護。杜絕異物搭接動物爬行引起的短路事故；防止人身觸電、污染及凝露閃絡現象發生。有效地減少母線排上間和對地之距離，處長母線排使用壽命。

   MPG series of radiation crosslinked heat shrinkable protection casing is good electrical insulation and safety protectivematerial. With easy installation,Very good environmental adptability and long service life etc Mainly used ln high and low voltage switchgear, power plant and substation of busbar busbarin sulation protection and safety protection. Put an endto foerign body lapcrawling animals caused by short circuit accident,Avoid personal electric shock,pollution and gel Flashover phenomenon, Effectively reduce bus line and ground between the distance, director general bus line sevvice life.

10-35KV MPG系列母排保護熱縮套管

10-35KV MPG series of busbar protection heat shrinkable casing

1.硬度（邵氏）：<80           1.Hardness(shaw):<80

2.阻燃性：氧指數>30           2.Flame retardant:oxygen index >30

3.徑向收縮率：> 50%           3.Radial shrinkage:> 50%

4.軸向收縮率：<5%            4.the axial shrinkage:< 5%

5.拉伸強度：>12Mpa            5.Tensile strength：>12mpa

6.擊穿強度：≥23KV/mm          6.Breakdown strength：was 23 kv/mm

7.體積電阻系數：>1014Ω.cm       7.Volume resistivitv:> 1014Ω .cm

8.使用溫度：-40+90℃           8.Using temperature：-40-+90℃

9.完全收縮溫度：120～140～C      9.Complete shrinkage temperature:120-140-C

10.斷裂伸長率：> 400%          10.Elongation at break:> 400%

11.標準顏色：紅綠黃           11.The standard colors:red ,green,yellow

12.櫟準長度：1M; 25M           12.The standard length:lm; 25m

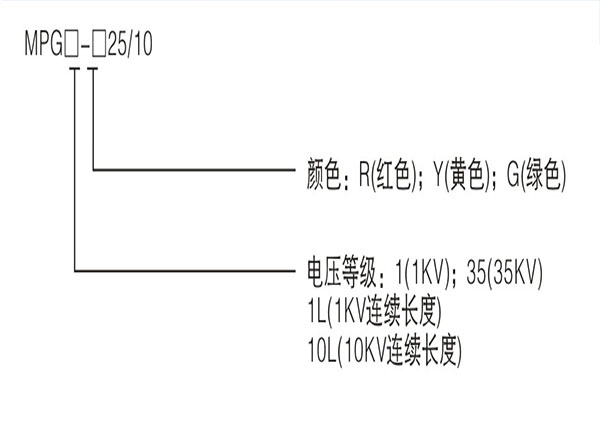

例如：MPGlO-R25/10

表示適用于10KV20-30mm寬度母排，顏色為紅色

Such as: MPGlO - R25/10

Said suitable for ten kv20-30mm width bus, color is red
